simple description:3-in-1 machine is mainly used for engineering plastics with strong hygroscopicity such as PA, PC, PBT, PET, ABS, etc. for efficient dehumidification dryer operation, and is connected with hot air hopper dryer.
weight :420.00
unit weight:KG
characteristic:For Plastic Material Drying
patent:Intelligent Drying System Control Software
manufacturer:HENGJU
Producing country:CHINA
Product alias:3-in-1 machine
3 in 1 Dehumidifier Dryer Product introduction
3 in 1 Dehumidifier Dryer parameter
Model
HCF-200200
Dryer Hopper
Capacity (KG)
200
Heat Protection Material
Fiberglass+Staninless Steel
Dry-Air Dew point
-35℃ to -45℃
Temperature (℃)
80-180
Air Flow (m^3/h)
200
Blower Power (KW)
2.2
Regeneration Blower (KW)
0.375
Drying Heater (KW)
11
Regeneration Heater (KW)
7.2
Pipe Sizes
Drying (mn)
63
Cooling (lnch)
3/4"
Regeneration (mn)
51
Conveying Blower (KW)
2
Conveying Distance (m)
Stage 1
6-10
Stage 2
6-10
Hose Size (Inch)
1.5
Sensor Hopper Capacity (L)
7.5
Vacuum Hopper Capacity (L)
7.5
Dimension LxWxH (cm)
123×95×239
Approx.Net Weight (KG)
420
Remark: Compressed air Pressure must more than 0.4MPa,air flow more than 15L/H; We reserve the right to change spencifications without prior notice.
3-in-1 machine
3 in 1 Dehumidifier Dryer Equipment principle
3-in-1 machine

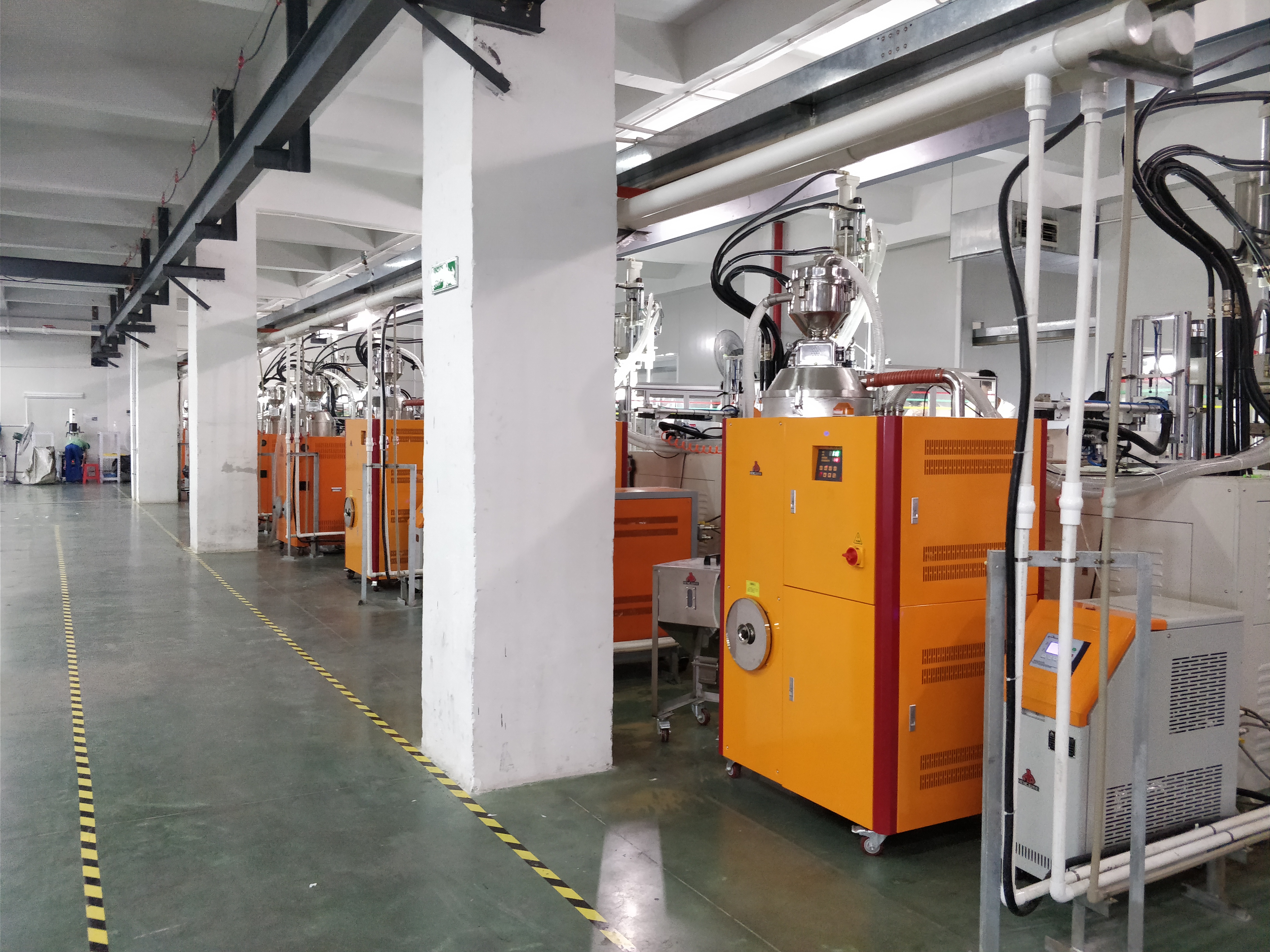

3 in 1 Dehumidifier Dryer application
In the production process of plastic products, the moisture problem bothers all processors. The rotary dehumidifier is widely used for drying all kinds of plastics, especially engineering plastics with strong hygroscopicity (such as PA, PC, PBT, PET, etc.) for high-efficiency dehumidification.
3-in-1 machine
3 in 1 Dehumidifier Dryer Precautions
1, please carry out electrical construction in accordance with the "Electrical Equipment Standards", "Inner Line Regulations" and this operating manual. 2, please do not use the power supply other than that specified. 3, please complete the specified grounding project. (Yellow power cord) 4, wiring and inspection work should be performed by professional technicians. 5, when you need to disassemble the machine for inspection and cleaning, please cut off the power supply and compressed air source first. Product alias:
